SEPARPLAST
- lFiber Recovery from Coarse Screen Rejects
- lPrimary
Screen Application
- 120 t/d
- Tailing
Screen Application
- 50 t/d
- Vertical design reduces maintenance
- Payback less than 6 months in most cases

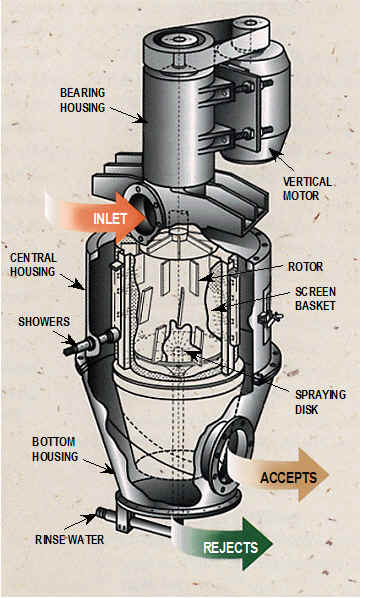

KEY SCREEN
The key screen has been
designed to work with a stock consistency inlet between 3% and 4-5%
maintaining a reject rate between 7% and 15%.
No considerable
thickening effects have been detected, so that the dilution water is not
needed.
MAULE has developed four sizes
of the K-Screen to offer a range of machines able to satisfy the needs of
the paper mills, especially for a
three stage configuration screening. Baskets with holes from 1.2 to
2.5 mm or slots from 0.10 to 0.40 mm can be used in the K-Screen.
|
Size |
Flow
rate (gpm) |
Power (Hp) |
|
GRI |
300 |
30 |
|
GRII |
500 |
75 |
|
GRIII |
1,000 |
125 |
|
GRIV |
1,750 |
200 |
K-Screen
Separplast
